deutschZS EUR Compact Centrifuges
Compact and Versatile

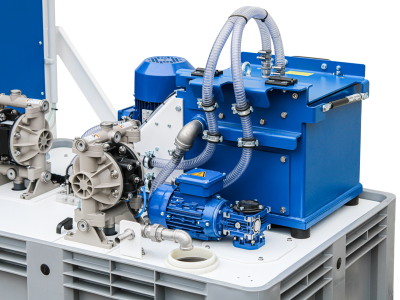

Based on the modular principle, the Compact Centrifuges ZS EUR consists of the standard centrifuge attachment and a compact buffer storage. The tank is optionally available with a divided container and also serves as a substructure. Due to the compact design, this series has the full range of functions of a cleaning centrifuge with a wide range of applications.
- Compact design with full functionality
- Optionally with already integrated storage tank for clear water
- High cleaning performance through efficient solid-liquid separation
- Plug & Play: Ready to use in just a few minutes
- SPS controlled and monitored cleaning process
<
>
Technical specifications
| ZS21 EUR | ZS21 EUR KW | ZS38 EUR | ZS38 EUR KW | ||
| Rated Capacity | Liter/hour | 800 | 800 | 1400 | 1400 |

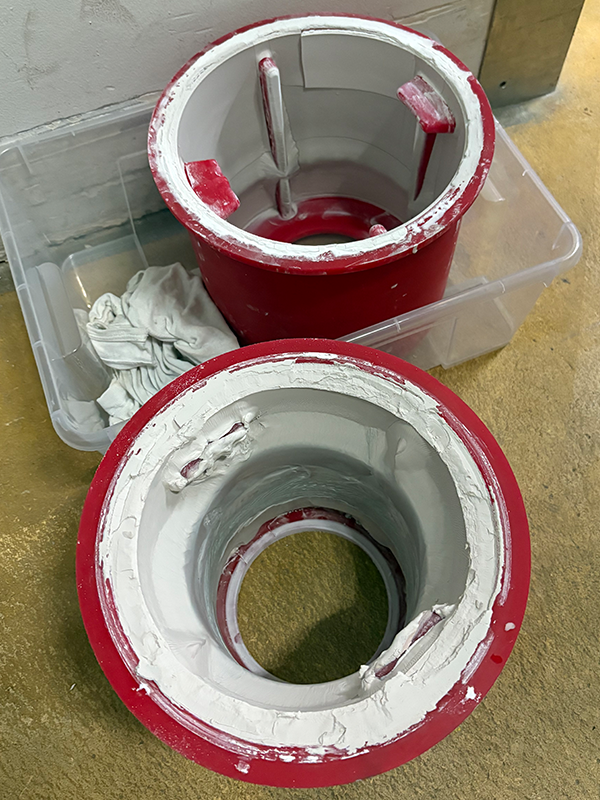

| Max. Capacity of sludge basket | Liter kg | 3,5 5,5 | 3,5 5,5 | 15 22 | 15 22 |
| Max. Rated speed | U/min | 4160 | 4160 | 2000 | 2000 |
| Max. Acceleration at nominal speed | g | 2070 | 2070 | 1810 | 1810 |
| Drive Power | kW | 1,5 | 1,5 | 4 | 4 |
| Average power consumption | kW | 1,0 | 1,0 | 2,5 | 2,5 |
| Internal diameter of the drum | mm | 210 | 210 | 380 | 380 |
| Dirty water tank (SW) | Liter | 225 | 110 | 225 | 110 |
| Clear water tank (KW) | Liter | optional (extern) | 80 | optional (extern) | 80 |
| Total height (A) | mm | 1546 | 1546 | 1546 | 1546 |
| Total width (B) | mm | 835 | 835 | 835 | 888 |
| Total length (C) | mm | 1481 | 1481 | 1481 | 1481 |
| Removal height sludge insert (D) | mm | 913 | 913 | 1024 | 1024 |
| Height of dirty water drain (E) | mm | 620 | 620 | 620 | 620 |
Benefits

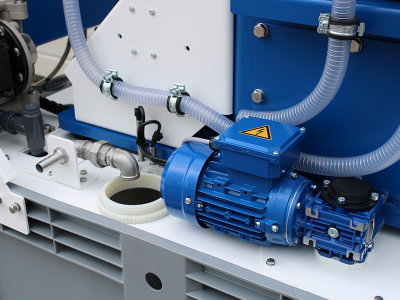

- Compact design with integration of all components (buffer tank, switchgear, agitator, pump units, ...)
- Easy transport and commissioning
- Particularly inexpensive due to standardization
- Optionally available with a divided process water tank: Separate dirty and clear water tank for maximum flexibility
- Easy access for tank maintenance and cleaning
Equipment
The following equipment is available for our ZS centrifuges:
- Auxiliary pumps for sucking liquid from external containers
- Storage tank for the external provision of process liquids in different volumes
- Automated dosing devices for additional media (Flocculants, Compounds)
- Housing and drum made of stainless steel
- Agitator for improved solids discharge
- Numerous control options to increase the degree of automation
ZS-M Dosing Pump
ZS Storage Container
Auxiliary PumpDownloads
