deutschTV-M Mobile Tumblers
Mobile und Universal
Trough Vibrators are characterized by their compact design for universal use. Thanks to their U-shaped work containers, very large workpieces can be machined relative to the system sizes.

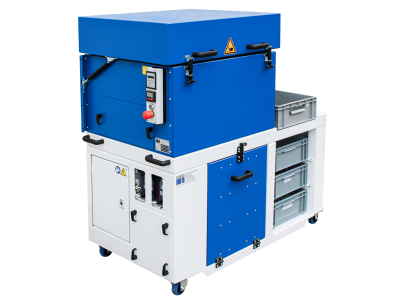

Our TV Mobile is unique in that all components that are required for vibratory grinding are compact and mobile mounted on a trolley. An integrated cascade cleans the process liquid, workpieces can be separated using a strainer box and various grinding tools can be stored in slots.
- Mobile vibratory finishing machine with integrates preparation of process liquids

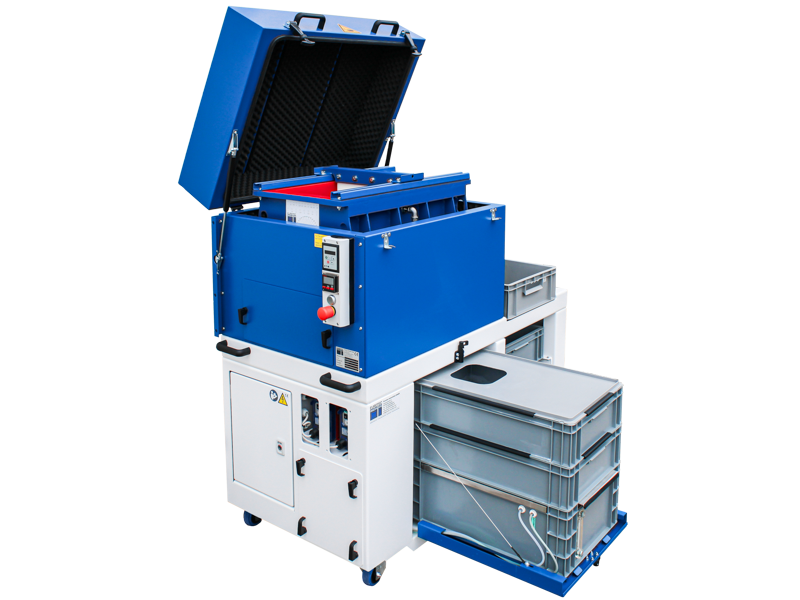

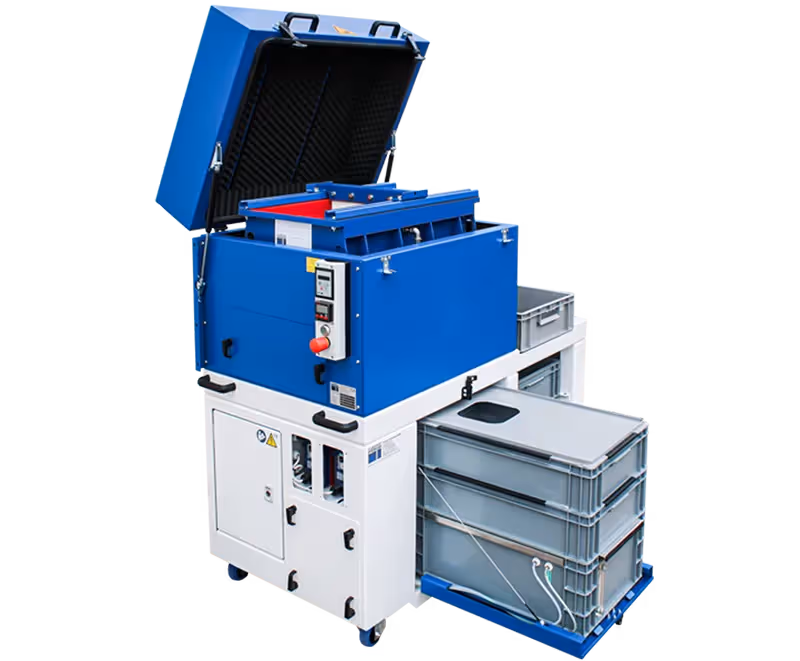

- Integrates strainer box for separating workpiece and grinding tools
- Compact design for large work containers including sound insulation
- Plug & Play System: Plug in the 230V power supply and get started
Click here for the product preview (Youtube)
<
>
Technical Specification
| TV15-M | TV25-M | ||
| Gross volume | Liter | 27 | 50 |
| Net volume | Liter | 18 | 36 |
| Total Power | kW | 0,8 | 1,0 |
| Inside length | mm | 500 | 600 |
| Inside width | mm | 220 | 280 |
| Inside height | mm | 270 | 325 |
| Outside length (A) | mm | 1450 | 1450 |
| High of the tumbler (B) | mm | 1240 | 1240 |
| High of the table (C) | mm | 720 | 720 |
| Width open door (D) | mm | 1200 | 1200 |
| Width closed door (E) | mm | 730 | 730 |
| Total height (F) | mm | 1350 | 1350 |
Advantages
- Mobile use: All components are integrated in a trolley
- Plug & Play: For commissioning only the 230V power supply has to be plugged in
- Quiet operation due to sound insulation

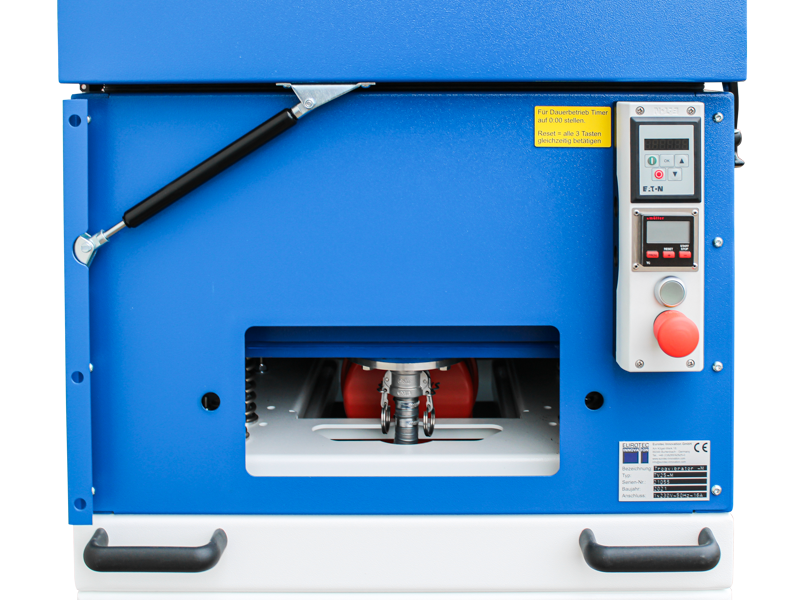

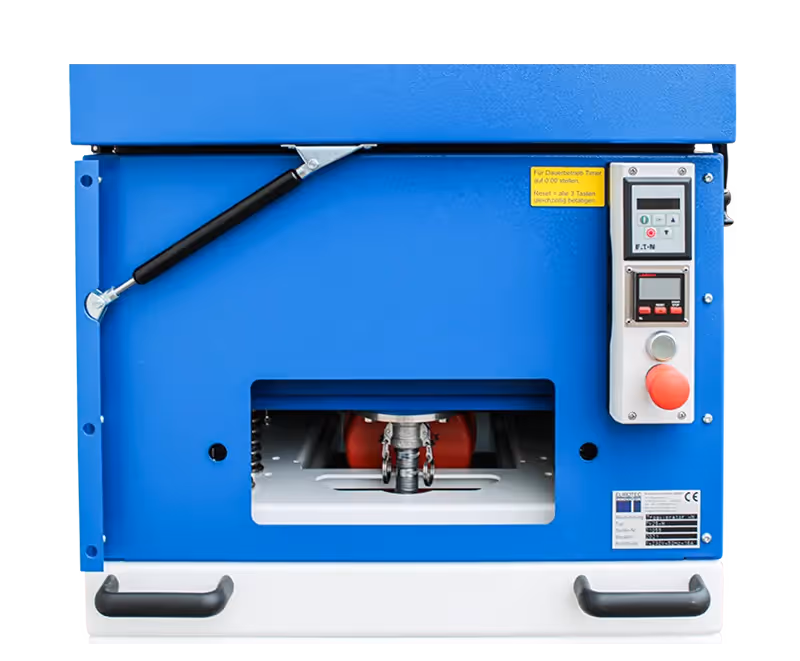

- Integrated electrical control for process monitoring
- Strainer device for separating workpieces and grinding tools
- Process water treatment through an integrates filter cascade
Downloads
Equipment
The following accessories are available for the mobile TV grinding systems:
- Drive with variable speed control (frequency controlled)
- Extended process control by timer
- Partitions for dividing the work container
- Clamping systems for fixing workpieces
- Dosing systems for process media and additives
- Extended process water control concepts
- Strainer for separating workpieces and grinding media in different perforations
- Additional accessories (upon request)
