deutschZS-M Mobile Centrifuges
Mobile and Powerful
There are numerous applications in industrial production in which large amounts of contaminated process fluids are produced. If these liquids are processed and circulated, costs are saved and the environment and resources are sustainably protected.
Our mobile centrifuges ZS-M are characterized by their mobility with a very compact design. The trolley makes it possible to use the centrifuge universally and locally. Thanks to the modular concept and the availability of several construction and buffer tank sizes, ZS-M centrifuges can be optimally adapted to customer-specific needs.
- Mobile cleaning centrifuge with optional integrated tanks for process liquids
- Plug & Play: ready for operation in just a few minutes
- Efficient processing of process fluids through high centrifugal forces
- PLC controlled and monitored process
<
>

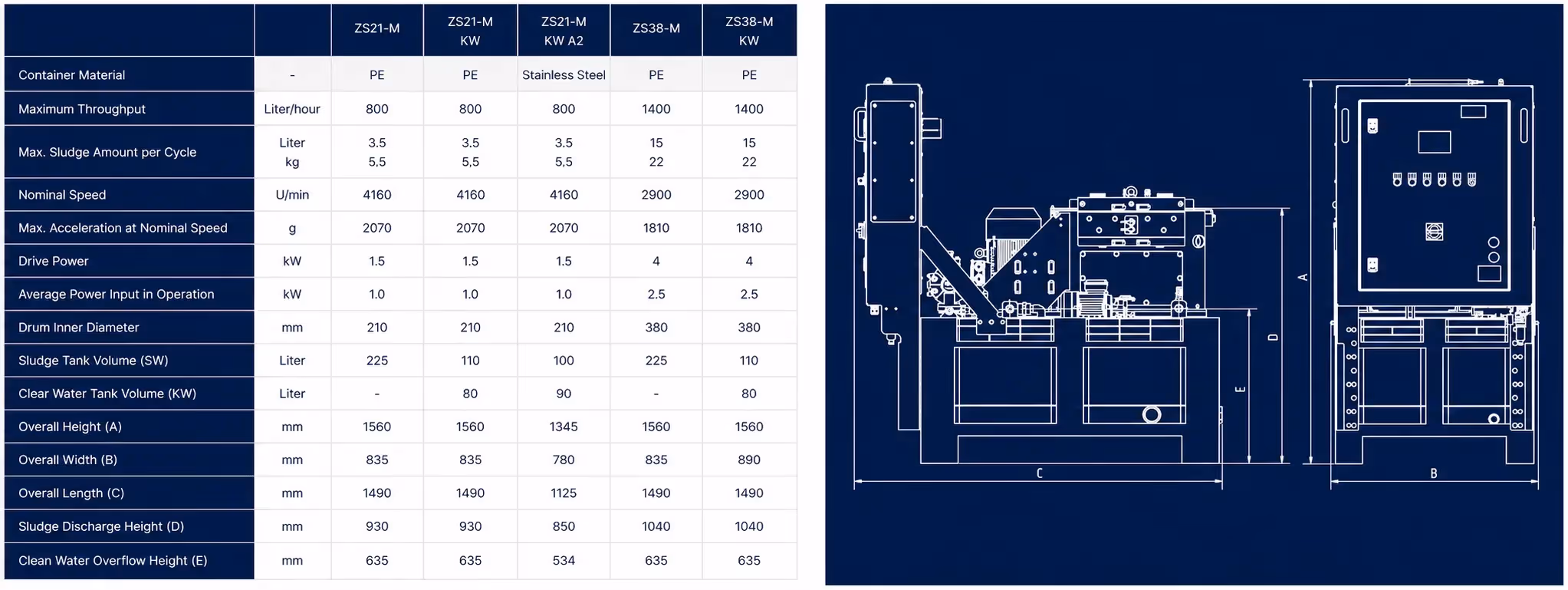

Technical Specification
| ZS21-M | ZS21-M KW | ZS21-M KW A2 | ZS38-M | ZS38-M KW | ||
| Material container | - | PE | PE | stainless steel | PE | PE |
| Max. Capacity | Liter/hour | 800 | 800 | 800 | 1400 | 1400 |
| Max. Capacity of Sludge basket | Liter kg | 3,5 5,5 | 3,5 5,5 | 3,5 5,5 | 15 22 | 15 22 |
| Rated speed | RPM | 4160 | 4160 | 4160 | 2900 | 2900 |
| Max. acceleration at nominal speed | g | 2070 | 2070 | 2070 | 1810 | 1810 |
| Engine power | kW | 1,5 | 1,5 | 1,5 | 4 | 4 |
| Average power consumption | kW | 1,0 | 1,0 | 1,0 | 2,5 | 2,5 |
| Internal diameter of the drum | mm | 210 | 210 | 210 | 380 | 380 |
| Dirty water tank (SW) | Liter | 225 | 110 | 100 | 225 | 110 |
| Clear water tank (KW) | Liter | - | 80 | 90 | - | 80 |
| Total height (A) | mm | 1557 | 1557 | 1344 | 1557 | 1557 |
| Total width (B) | mm | 835 | 835 | 778 | 835 | 888 |
| Total length (C) | mm | 1481 | 1481 | 1124 | 1481 | 1481 |
| Removal height sludge insert (D) | mm | 928 | 928 | 843 | 1039 | 1039 |
| Height of waste water return (E) | mm | 635 | 635 | 534 | 635 | 635 |
Benefits
- Maximum mobility through the integration of all components on a trolley
- Flexible use due to a compact design
- High discharge capacity due to acceleration forces in the system of over 2000 times gravitational acceleration
- Management of the process water in a cycle, which minimizes operating costs and protects the environment
- Saving of expensive additives for the finishing process (compound)
- Economical and efficient separation of solid particles from a mixture
- Designed for continuous operation with high availability
- Plug & Play System: ready for use in minutes
- Clean liquids from multiple machines with just one centrifuge
Application Areas
- Treatment of vibratory finishing process water
- Cleaning of mixtures (suspensions and emulsions)
- Preparation of phosphating, painting, washing and oil baths
- Processing of cooling lubricants
- Undersize discharge during wet blasting
- General separation of solids from liquid mixtures
- Cleaning of baths and storage tanks from external Systems
Equipment
The following equipment is available for our mobile centrifuges:
- Clear water tank (KW) with pressure pumps for process water supply
- Waste water tank (SW) as a buffer for process liquids
- Combined trolley with several separate containers (clear and waste water)
- Optionally with or without a peeling pipe for the discharge of clear water
- Auxiliary pumps for drawing liquid from foreign containers
- Electronic coupling with a plant park
- Agitator for improved solids discharge
- Automatic compound level monitoring and dosing units
ZS-M Dosing Pump

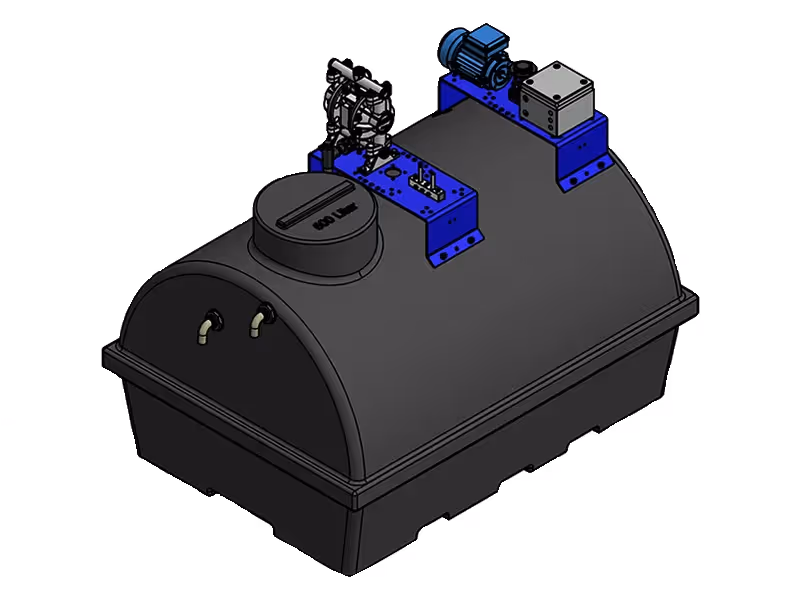

ZS Storage Container

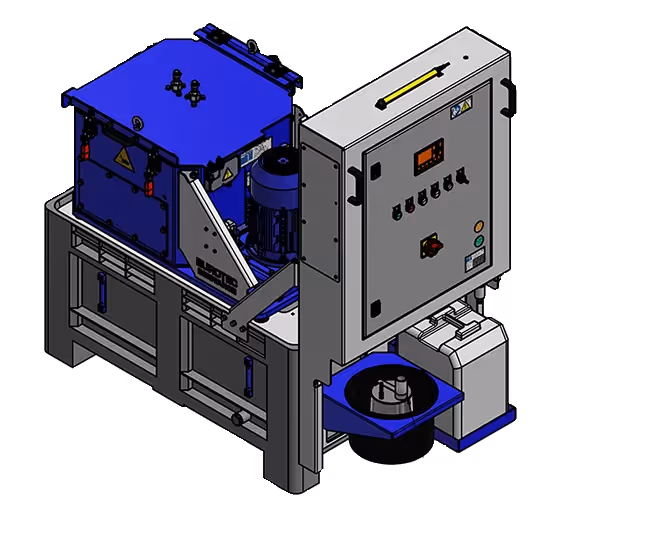

Auxiliary PumpDownloads
