Ceramic Media

Ceramic media are commonly used for deburring and polishing.

They enable the workpieces to be processed effectively and evenly and free them from unwanted material and burr inclusions. Ceramic abrasives are characterized by their longevity, good price-performance ratio and their hight densities. In addition, high temperatures in the working container have no effect on the grinding performance.

Depending on the quality, they can deburr matt or create bright, shiny surfaces. Ceramic media are particularly suitable for harder materials such as steel or stainless steel.

Advantages at a glance:

Great grinding performance at high grinding pressure
Robust and high density
Temperature does not affect grinding performance

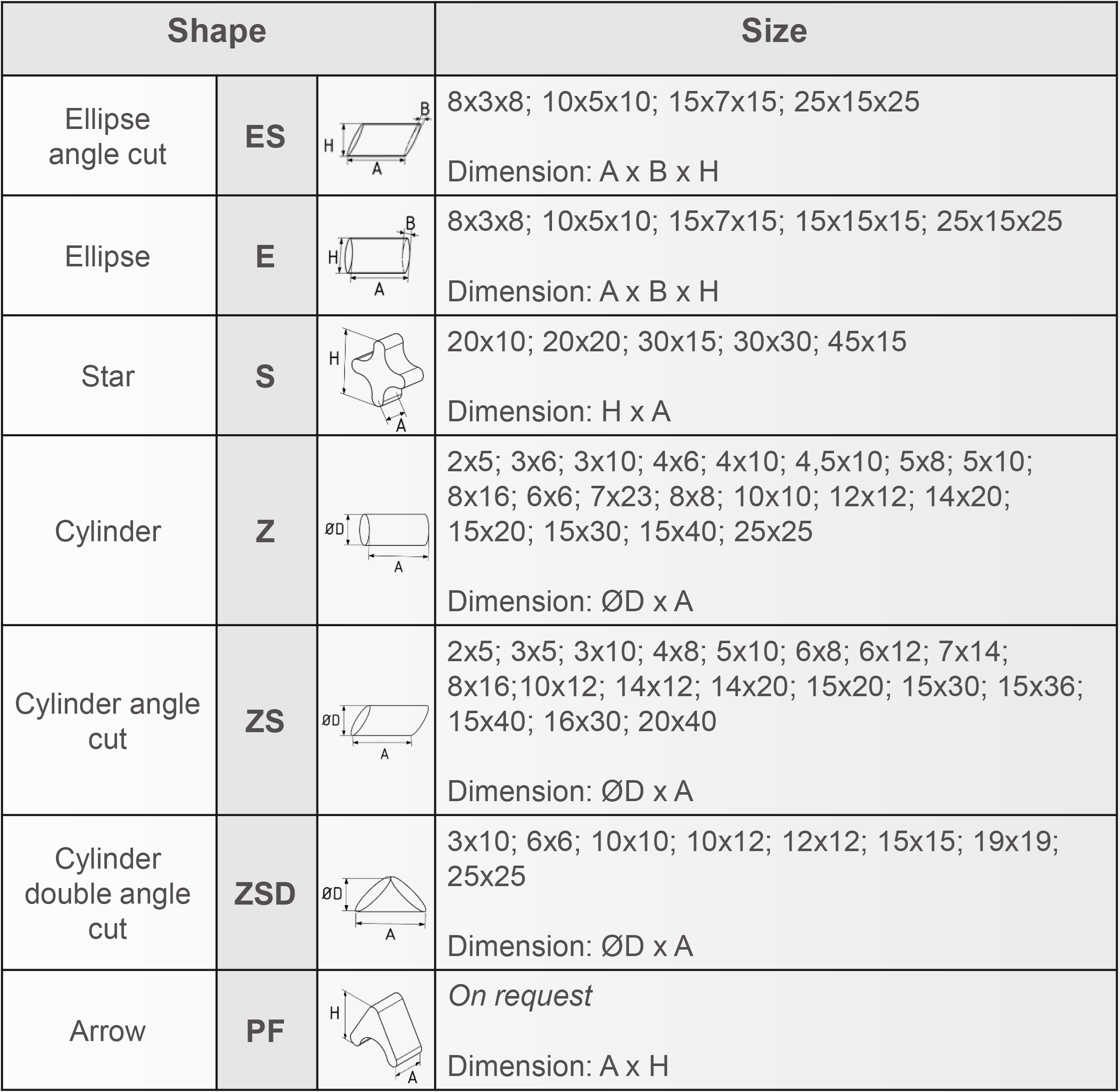

Overview

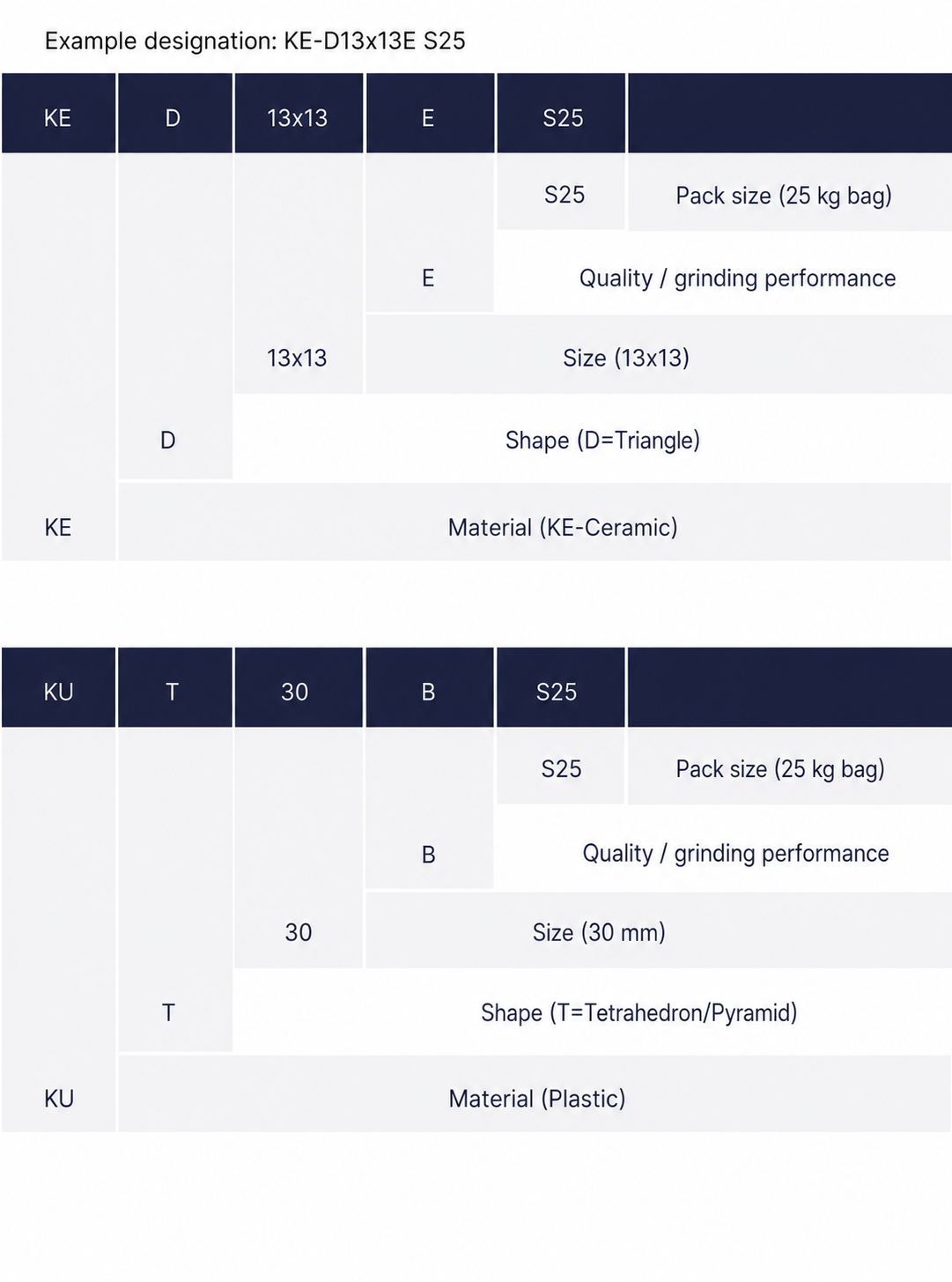

Article Number Key

All abrasive medias are provided with an individual article code in order to clearly identify them.

Example Designation: KE-D13x13E S25

Quality / Grinding performance

The grinding performance has a significant influence on the grinding process and the grinding pattern. The qualities range from A (very abrasive) to P (polishing). In addition to the quality, the media size also influences the grinding performance.

With quality P, the grinding wheel is made of pure porcelain (Ceramic), which can serve as a carrier for grinding pastes or other additives. The abrasive media itself has no abrasion.

Depending on the media shape and size, several grinding stages are available.

Downloads

Process Media Catalog

Guide for Process Media

Here you will find general information on processing media such as abrasives, compounds and additives for vibratory finishing.

Plastic Media

For deburring and polishing. Soft, elastic and particulary recommended for sensitive surfaces such as aluminum, zinc or brass.

Granules

For drying and polishing: Corn granules or nut granules can be used in many different ways in mass finishing technology.

Compounds and Flocculant

For chemical support of the grinding process and as an additive for circulation water systems. Compounds and Flocculants also support the removal of abrasion and dirt.

Grinding and Polishing Pastes

In combination with carrier media, particulary fine surfaces can be created with polishing pastes. Grinding pastes support and strengthen the vibratory grinding process.

Special Media

For special requirements on the machining process and for special applications.
