TV Trough Vibrators

Compact and Universal

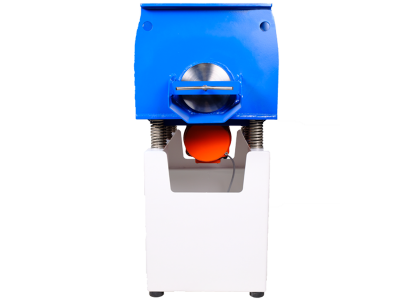

Trough Vibrators are characterized by their compact design for universal use. Thanks to their U-shaped work containers very large workpieces can be machined relative to the system sizes. The vibration motor is directly attached to the underside of themachine. Our TV Vibrators impress with a good price-performance ratio and offer an ideal machine platform for a variety of applications within the surface grinding technology.

Universally applicable in numerous application scenarios
Compact design for large work containers
Numerous accessories options
Particularly inexpensive even for occasional use
Fast change of grinding media
TV15 and TV25 available as a mobile version (TV15-M and TV25-M)

Pictures
Technical Data
Application Areas
Downloads
Accessory

Picture Gallery

		TV15	TV25	TV45	TV55	TV73	TV85	TV95
Gross volume	Liter	27	50	115	275	430	840	1700
Net volume	Liter	18	36	90	230	370	740	1550
Engine Power	kW	0,35	0,4	1	2	4	5	7
Inside length(A)	mm	500	600	850	1200	1100	1500	2000
Inside width(B)	mm	220	280	380	480	680	780	980
Inside height(C)	mm	270	325	395	530	650	800	1000
Outside height(E)	mm	615	615	635	635	635	700	750

Application Areas

Deburring, smoothing and polishing
Descaling, rust removal and cleaning
edge rounding
Surface finishing

Advantages

Scraper edge to reduce workpiece buildup on the inside of the container
Particularly economical even for occasional use
Optionally available as a version for pressure deburring and for ball polishing
Robust construction with a low-maintenance vibration motor. Lifetime greasing.
Integrates holder for lifting and moving the machine using a pallet truck or a forklift

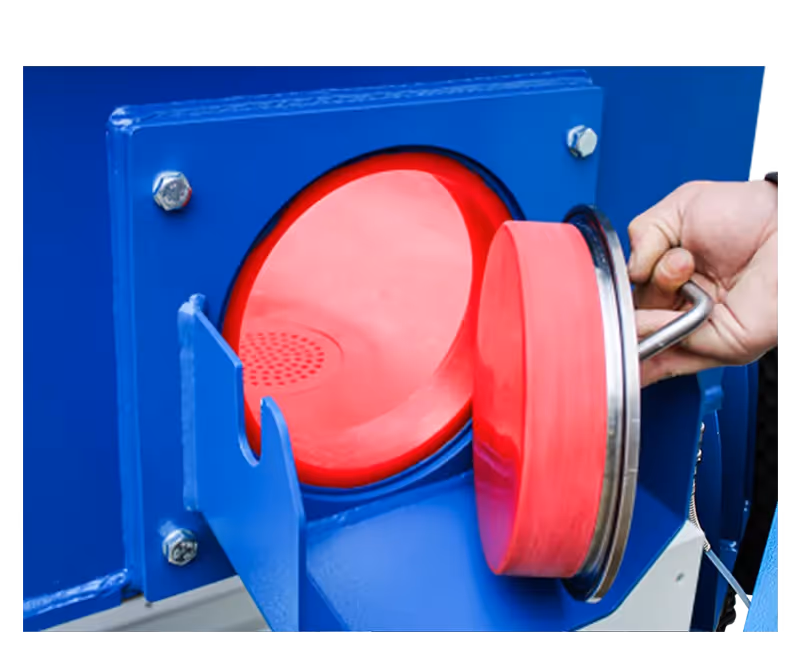

Fast container emptying and grinding tool change through a generous drain opening for grinding media
Quick change drain strainer made of polyurethane
Rubber dampened feet to reduce vibration transmission

Downloads

Product magazine

Equipment

The following accessories are available for the TV Trough Vibrators:

Drive with variable speed control (frequency controlled)
PLC controlled electrical switchgear for partially and fully automated plant operations

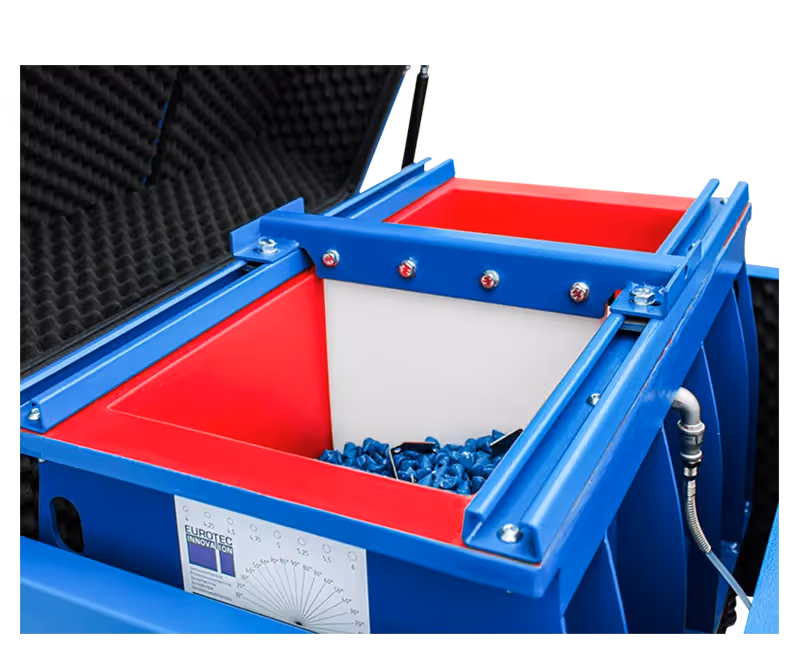

Partitions for dividing the work container
Clamping systems for fixing workpieces
Dosing systems for process media and additives
Noise-reducing lids
Extended process water control concepts
Screening plants for the separation of workpieces and grinding media
Universally screw able and therefore exchangeable delivery chutes
