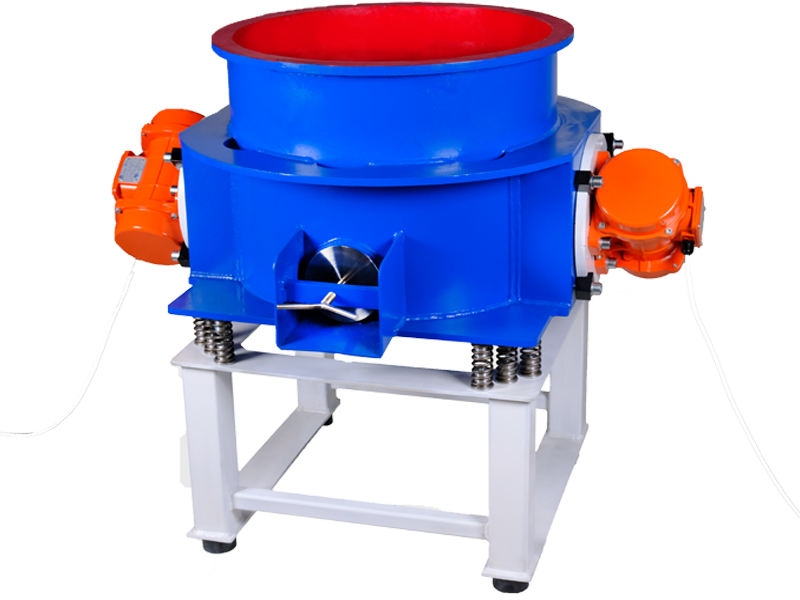

deutschRM Circular Vibrators
Versatile and efficient
From deburring to rounding edges up to high-gloss polishing: RM Circular Vibrators are universal mass finishing machines that can be used for a wide variety of work pieces and finishing objectives. They offer a high level of efficiency and impress with their high reliability.
Our RM Circular Vibrators are particularly suitable for fine grinding and polishing workpieces that place high demands on the desired surface. The special system construction makes it possible to achieve perfect surfaces even in hard-to-reach places such as corners or inner structures. With a high level of reproducibility and an uniform grinding pattern, RM Circular Vibrators offer maximum process safety and reliability.
Application Area:
- Grinding, polishing and high-gloss compaction of large components
- Machining of aluminum components (rims, general engine components, housing, levers, ...)
- Polishing of die casting and stamping dies
- Grinding and polishing of medical implants
- Particularly suitable for hard-to-reach places and difficult geometries (matrices, stamping forms, ...)
- Smoothing of forging molds and turbine blades
- Numerous other possible applications

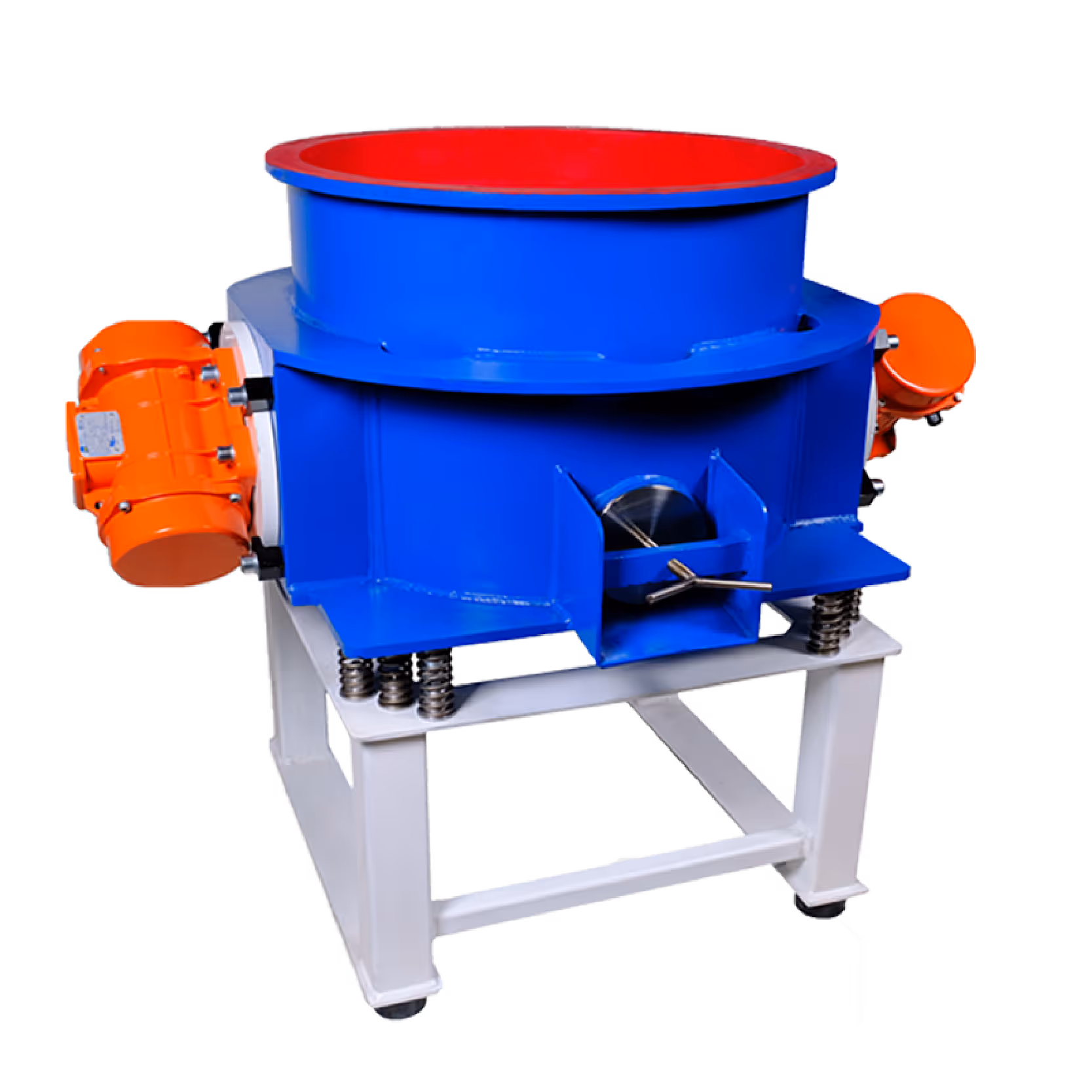

Picture Gallery Standard Version

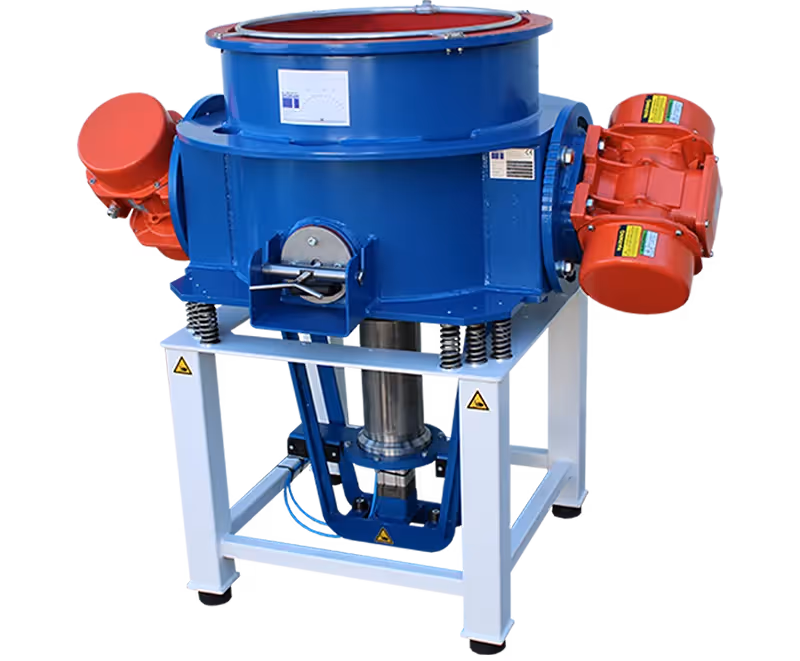

Picture Gallery RM AHZ
Technical Specifications
| RM33 | RM34 | RM54 | RM84 | ||
| Gross volume | Liter | 145 | 165 | 260 | 650 |
| Net volume | Liter | 130 | 150 | 240 | 610 |
| Engine Power | kW | 3 | 3 | 5 | 12 |
| Total width (A) | mm | 1260 | 1260 | 1600 | 2100 |
| Inside diameter (C) | mm | 620 | 620 | 750 | 1050 |
| Total height (D) | mm | 1075 | 1140 | 1200 | 1350 |
| Output height (E) | mm | 530 | 530 | 530 | 530 |
Benefits
- Consistent and reproducible processing quality of the grinding and polishing results
- Homogeneous and uniformly grinding pattern
- Possibility to maintain difficult workpiece contours
- Best results even in difficult places
- Possibility of non-contact grinding of several workpieces in one work container
- Designed for continuous operation even in 24-hour operation
- Semi-automatic operation possible through electronic process control
Equipment
Available equipment:
- Drive with variable speed control (frequency controlled)
- Additional third unbalance motor at the tank bottom
- PLC controlled electrical switchgear for partially and fully automated plant operation and optimized process control
- Dosing systems for process media and additives
- Noise-reducing lids
- Various clamping systems for fixing workpieces in the work container
- Extended process water control concepts
- Additional accessories (upon request)
