deutschZS Centrifuges
Environmentally friendly and powerful
There are numerous applications in industrial production in which large amounts of contaminated process fluids are produced. If these liquids are processed and kept in a continuous cycle, costs are saved and the environment and resources are sustainably protected.

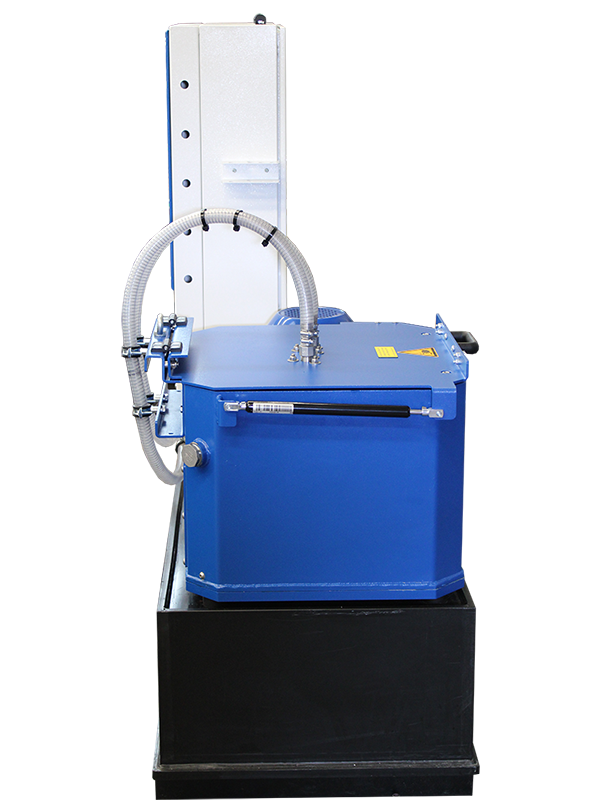

Our centrifuges with exchangeable sludge insert from the ZS series are characterized by their high cleaning performance. Thanks to the modular concept consisting of a centrifuge attachment and a base, the system can be adapted exactly to your customer needs. There is a choice of buffer tanks with different volumes for both dirty and clear water.
ZS centrifuges are particularly user-friendly because a PLC controlled system. The process water management system independently monitors fluid levels and communicates with coupled systems. With an exchangeable sludge insert, the discharged and dried solid can be disposed of economically and easily.
- Efficient processing of process liquid through high centrifugal forces
- Different sizes exactly suitable for your application
- High throughput enables the simultaneous supply of several systems
- PLC controlled and monitored cleaning process
- Process water management
Technical specifications
| ZS21 PE | ZS38 PE | ||
| Rated Capacity | Liter/hour | 800 | 1400 |
| Max. Capacity of sludge basket | Liter kg | 3,5 5,5 | 15 22 |
| Rated speed | RPM | 4160 | 2900 |
| Max. acceleration at nominal speed | g | 2070 | 1810 |
| Drive Power | kW | 1,5 | 4 |
| Average power consumption | kW | 1,0 | 2,5 |
| Internal diameter of the drum | mm | 210 | 380 |
| Dirty water tank (SW) | Liter | 200 | 200 |
| Clear water tank (KW) (optional) | Liter | 20/40/300/500 | 20/40/300/500 |
| Total height (A) | mm | 1580 | 1580 |
| Total width (B) | mm | 700 | 700 |
| Total length (C) | mm | 1706 | 1706 |
| Removal height sludge insert (D) | mm | 799 | 906 |
| High of dirt water drain (E) | mm | 375 | 375 |
Benefits
- High discharge capacity due to acceleration forces in the system of over 2000 times gravitational acceleration (depending on model)
- Management of the process water in a cycle, which minimizes operating costs and protects the environment
- Saving of expensive additives for the finishing process (compound)
- Economical and efficient separation of solid particles from a mixture
- Designed for continuous operation with high availability
- Complete process water management in one system (buffer storage, pressure pumps, automatic level monitoring and refilling, ...)
- Supply of several systems simultaneously with only one ZS centrifuge by optionally available additional buffer tanks for clear water
- Suitable for process liquids up to 70 °C (optional cooling available)
Application Areas
- Treatment of vibratory finishing process water
- Cleaning of mixtures (suspensions and emulsions)
- Preparation of phosphating, painting, washing and oil baths
- Processing of cooling lubricants
- Preparation of cooling liquids from saws, milling machines and lathes
- General separation of solids from liquid mixtures
Equipment
The following equipment is available for our ZS centrifuges:
- Various container sizes as buffers for process fluids made of PE, PP, stainless steel
- Modularly expandable clear water tank (KW)
- Peeling pipe for clear water supply without additional feed pump
- Pressure pumps for the simultaneous supply of process water to several systems
- Auxiliary pumps and lifting systems for sucking liquid from foreign containers
- Filter and screening systems for the pre-cleaning of process liquids
- Electronic coupling with a plant park
- Automatic level monitoring and refill dosing devices
- Automated dosing devices for additional media (flocculant, compound)
- Stainless steel housing (A2 or A4)
